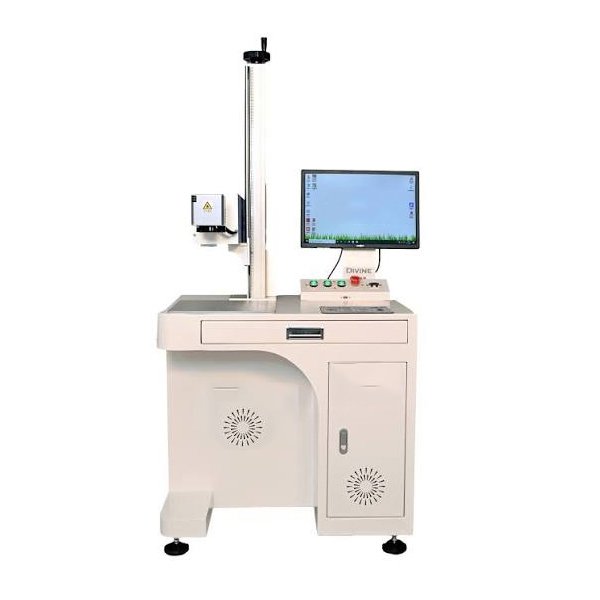

CO2 RF Laser Marking Machine
| Parameter | Typical Specification |
|---|---|
| Max. Laser Power | 10 W / 30 W / 50 W / 100 W |
| Working Area |
70mm X 70mm 100mm X 100mm |
| Laser Wavelength | 10.6 μm |
| Q Frequency | 1 KHz – 80 KHz |
| Linear Speed | ≤ 7000 mm/s |
| Repeatability | ± 0.01 mm |
| Supply Voltage | 220 VAC / 50–60 Hz |
| Graphic Format Supported | .plt, .dxf, .bmp, .pcw, .dxf, .cdr |
| Rotary Device | Optional |
| Cooling Mode | Air Cooling |
